MYRMagneto therapy ring type coil applicator applies pulsed electromagnetic field andtransduces high intensity field pulse into body tissues, which can speed up the healingprocess of sport injuries, chronic pains and degenerative joint diseases.
3-handle Pulsed Electromagnetic Field Therapy Device
$3,099.00 USD
All Prices Include Taxes and Fees
Specification
| Field strength at the coil | 4-7 Tesla |
| Voltage | AC100-240V |
| Output power | 1200W |
| Oscillation frequency in MT mode | 1-100HZ |
| Oscillation frequency in ST mode | 1000-3000HZ |
| Water cooling system | Water 2.5L |
| Touch screen size | 10.4 inches |
| Working Time | up to 10 hours/day |
| Size | 20.47 × 26.77 × 23.62 inches |
| Gross weight | 48kg |
Model
Working Principle
Magneto Handles

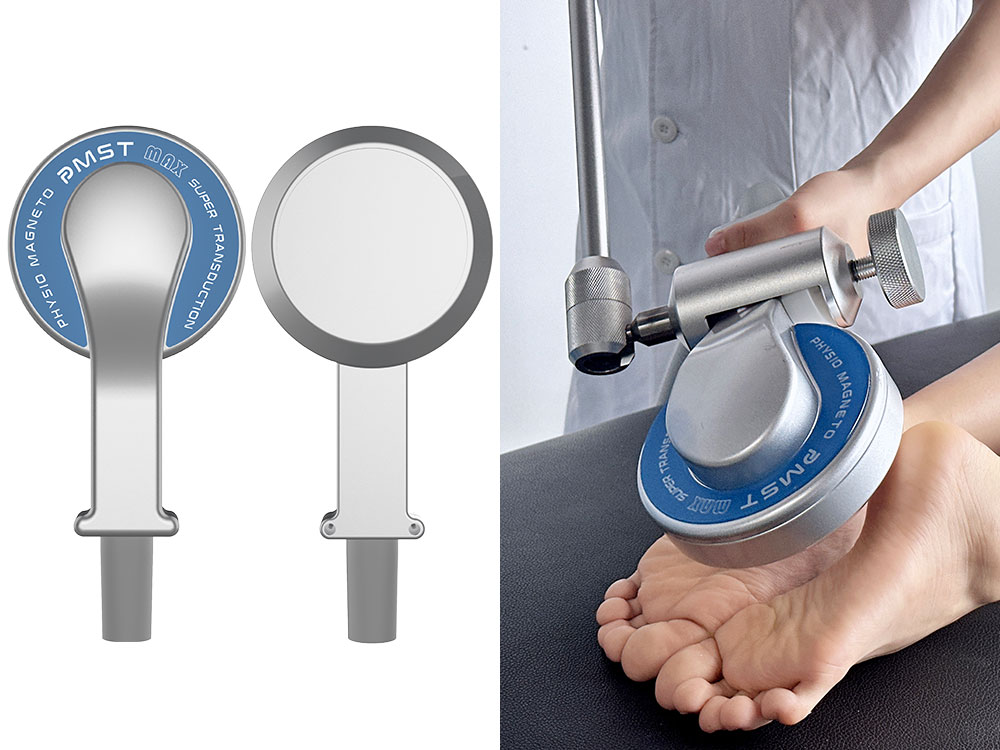

Point Handle

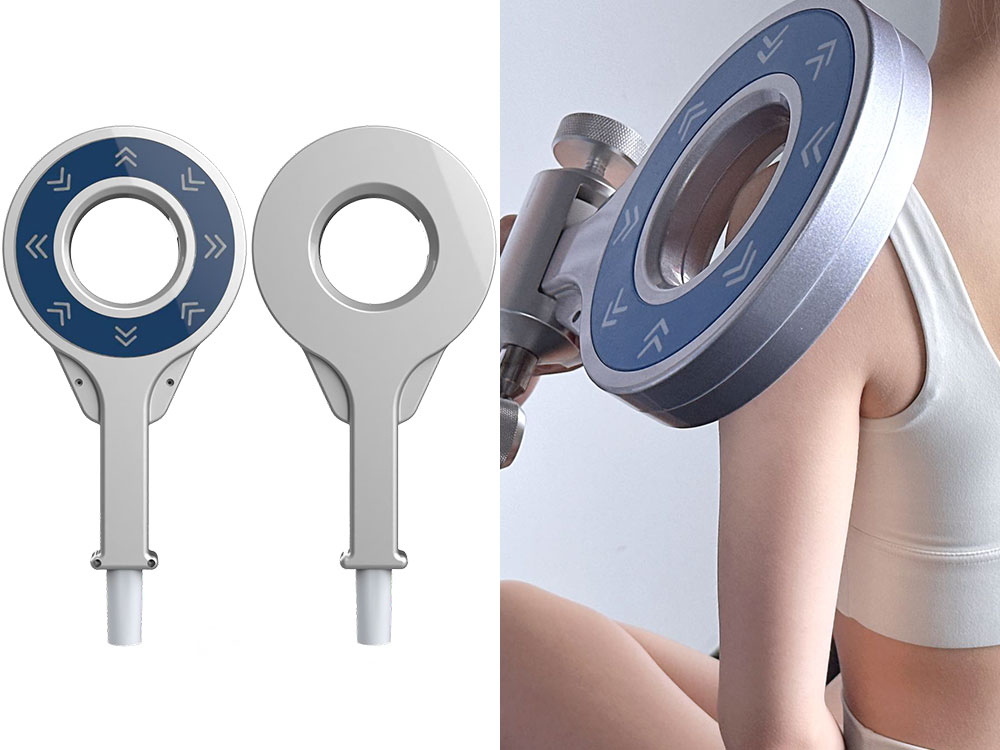

Joint Handle

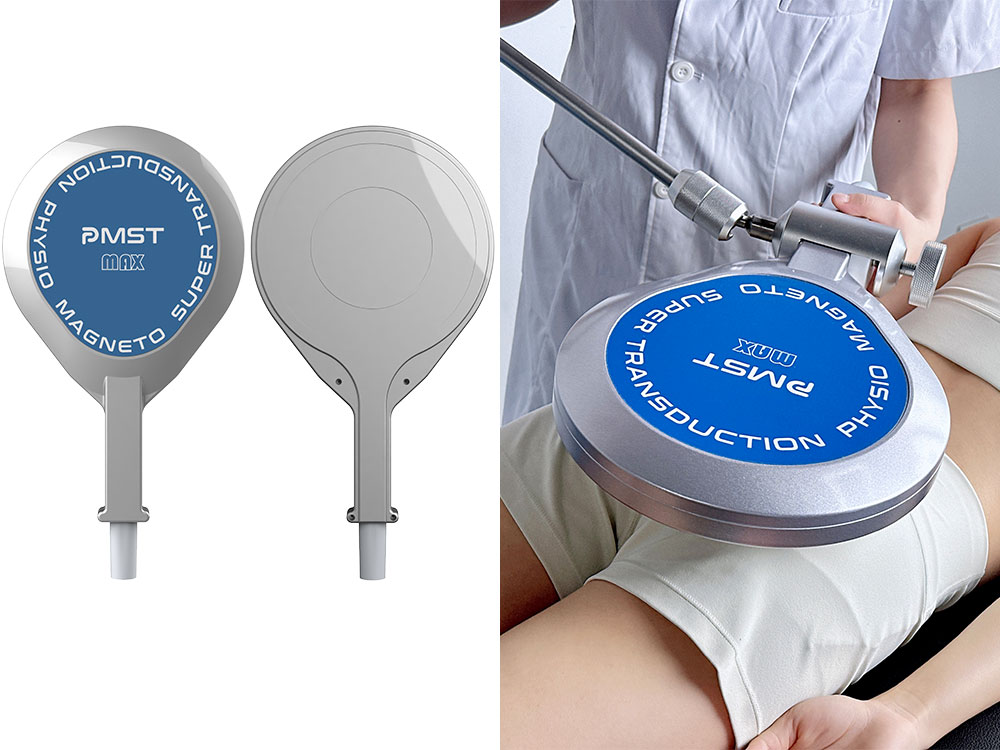

Muscle Handle
Feeling When Using
The treatment is generally painless and the treated area will vibrate slightly.
Indications
(Chronic) inflammation of
(Chronic) pain, including
Wear and tear conditions such as
Working Principle
During this procedure, different wavelengths and outputs of low-level light areapplied directly to a targeted area. The body tissue then absorbs the light. The redandnear-infrared light cause a reaction, and the damaged cells respond withaphysiological reaction that promotes regeneration.
Laser Handle
The laser handle can be installed on the Joint Handle.The treatment side of the handle without the logo.
Feeling When Using
It is painless to use and will feel warm, similar to the feeling of sunlight hitting your skin. This warming sensation is usually mild and disappears soon after treatment.
Indications
1.Ligament sprains
2.Muscle strains
3.Tendonitis
4.Bursitis
5.Tennis elbow
6.Neck pain
7.Lower back pain
8.Knee pain
9.Pain associated with muscle spasms
Product Highlights
Pluggable handle
Pluggable handles can be easily attached and detached from machine, allowing for flexibility and customization.Three pluggable magnetic therapy devices for different parts of the body allow you to switch for different treatment purposes. The laser handle can be installed to combine magnetic therapy and laser therapy.Instead of buying machine with fixed handles, it offer a more cost-effective option.
Swivel arm with central lock
Flexible holding arm with central lock for static and fatigue-free work.
Large and easy-to-use interface
Intuitive and simple operation thanks to 10.4-inch touch display and preprogrammed treatment protocols.There are 10 parts can be choose.The operation is simple and can be completed by yourself, which is very convenient and saves time.
Long battery life
Continuous and reliable operation for at least 8 hours thanks to water cooling system.
Product Advantages
| Comparision | Ordinary equipment | Our equipment |
| Handle | Fixed single handle | Three optional magnetic therapy handles and one laser handle, easy to replace, versatile and better efficacy. |
| Dissipation performance | The speed is slow, and the machine needs to be stopped to cool down. | The water cooling system has good heat dissipation effect and can work continuously. |
| Noise | Loud sound | Quiet, more comfortable |
| Function | Single function | Versatile |
| Strength | The maximum can only reach 5 Tesla. |
Up to 7 Tesla magnetic field strength for deep tissue repair and Up to 3000 Hz high frequency enables a high penetration depth (18 cm) and a large range of indications |
| Screen | Smaller screen | 10.4-inch screen, easy to use |
Application Scenario
Individual users (family/self-use scenarios)
Troubles: back pain, stiff joints, cold legs, lumbar strain caused by long-term sitting, physical therapy in the hospital is time-consuming and laborious, plasters have short-term effects, and taking painkillers causes concerns about side effects.
Core needs: convenient pain relief, joint rehabilitation, non-drug treatment, simple operation.
Our products can help you solve:
1.An “all-round rehabilitation therapist” that can be used at home! It uses 4-7 Tesla strong magnetic field + 3000Hz high frequency technology, which can penetrate 18cm tissue layer and directly act on the source of pain. A variety of handles directly hit the pain point, whether it is sports strain, old cold legs, or lumbar strain caused by sitting for a long time, 20 minutes each time, easily relieve chronic pain.
2.No professional operation is required, the 10.4-inch touch screen presets multiple treatment modes, one-click start. The water cooling system supports 8 hours of continuous use, the quality is stable and reliable, and the EU certification is safe and radiation-free, so it can be used with confidence by both the elderly and children.
Stores / Institutions (Rehabilitation Centers / Gyms / Clinics)
Troubles: Traditional massage is slow to take effect, competing equipment can only do surface therapy and cannot solve deep tissue damage, and it is not suitable for people of all ages. It is homogeneous with other equipment in the same industry and cannot seize the high-end rehabilitation market.
Core needs: improve service professionalism, increase revenue points, and improve equipment durability.
Our products can help you solve:
Visualization of therapeutic effects: The 7 Tesla magnetic field strength far exceeds that of ordinary devices (mostly 1-3 Tesla). Clinical verification shows that 83% of users have a pain relief rate of more than 60% after 4 weeks of use.
Double the efficiency: 3000Hz high-frequency mode can quickly penetrate deep muscle and bone, and the effect of a single treatment is equivalent to 3 times of traditional physical therapy, saving customers time.
One machine for multiple uses: joint, point, muscle treatment head + laser head covers 90% of musculoskeletal problems, from sports rehabilitation to chronic diseases of the middle-aged and elderly, and meets the needs of customers of all ages in one stop.
Value-added service suggestions:it can be matched with customized service packages, such as “magnetic therapy + sports rehabilitation courses, to increase the customer unit price; provide employee operation training, and provide a treatment case library to quickly establish a professional reputation.
Cost-benefit analysis: The equipment supports 8 hours of continuous operation, the water cooling system has a life of 50,000 hours, and the average daily cost is less than US$7. Based on a single charge of US$42, if 4 customers are received every day, the investment can be recovered in 1 month.
Operation threshold: no professional qualifications are required, and novices can get started in 30 minutes of training, reducing labor costs.
Product Details

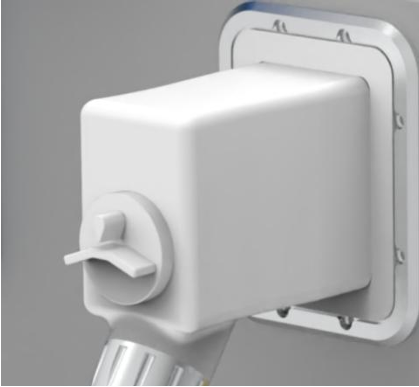

The machine has the changeable handles. Before starting the machine, the handle must be attached to the device firmly. If there is no handle attached to the device and we start the machine, the energy has no way to release and will burn the circuit board. This misuse to cause the problem WILL NOT BE included into the warranty.
Before the each movement of the holding arm, we need to loosen the central lock. If not, the thread will be easily damaged. This misuse to cause the problem WILL NOT BE included into the warranty.
Because the machine adopts water cooling system, we need to add about 1.5 liter
distilled or purified water into the machine when we receive the device. For maintenance, we need to change the water every month.
Product Appearance
Part List
Host Machine
Point Handle
Joint Handle
Muscle Handle
Laser Handle
Holding Arm
Power Line
Water Tube
Holding Arm Supporter
Silicon Case
Interface Display
FAQ
Recommended steps and Operation
Magneto Therapy:
(1) Enter the password of “888888”
(2) Position the applicator above the treatment area (The side that is not marked is the treatment side of the magneto applicator.)
(3) Fix the holding arm Choose the body part in the interface. Use the preset
parameters or adjust intensity, frequency and treatment time according to the type of person and the specificity of the treatment.
(4) Press the “start button”.
Laser therapy:
(1) Use the silicone to combine magneto handle and infrared handle
twice a week
(2) Use two wavelength and adjust treatment time and intensity based on the needs.
(3) Use the holding arm to secure the infrared handle.
(4) Press the ”Start” button
Contraindiction
Magneto Therapy:
1.Vascular diseases present in or near the treatment area
2.Heartandbrain
3.Localinfections in the treatment area
4.Aroundmalignant or benign tumours
5.Directly on cartilage surfaces or near the small facet joints of the spinal column
6.Directly over implanted electronic devices such as pacemakers, analgesic pumps,etc.
7.Inareas, in which mechanical energy in the form of vibrations may lead to tissue
damage such as metal implants after a fracture.
Laser Therapy:
1.Impaired cutaneous thermal sensations
2.Defective arterial cutaneous circulation
3.Dermatitis or eczema
4.Tumors
5.Skindamage due to ionizing radiation
6.Tuberculosis
7.Photosensitivity
8.Hyperesthesia
9.Mentalretardation
10.Metalimplant
11.Fever
Maintenance
1.Change the water every two weeks. The water should be distilled or purified water.
2.The laser handle must not be put under the treatment side of the magneto applicator.
3.The side that is not marked is the treatment side of the magneto applicator.
Note
1.The body part which will takes laser therapy cannot covered by the clothes.
2.The laser therapy and magneto therapy can work at the same time.The naked eyes cannot directly look at the direction in which the laser is thrown.
3. If there is only a pure metal object in the vicinity of the treatment site, vibration
and heat will occur depending on the distance of the metal object. If there is an implanted circuit in the body, such as a pacemaker, or other circuit device. Strong magnetic fields can cause power failures or damage internal chips. ID cards, car keys, access cards, and other wireless devices near the magnetic ring will be damaged.
